Type R Thermocouple
Type R Thermocouple (Platinum Rhodium -13% / Platinum): The Type R is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the type S.
Type R Temperature Range:
Accuracy (whichever is greater):
Type R Thermocouple Reference Table:
Type R Temperature Range:
- Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
Extension wire, 32 to 392F (0 to 200C)
Accuracy (whichever is greater):
- Standard: +/- 1.5C or +/- .25%
- Special Limits of Error: +/- 0.6C or 0.1%

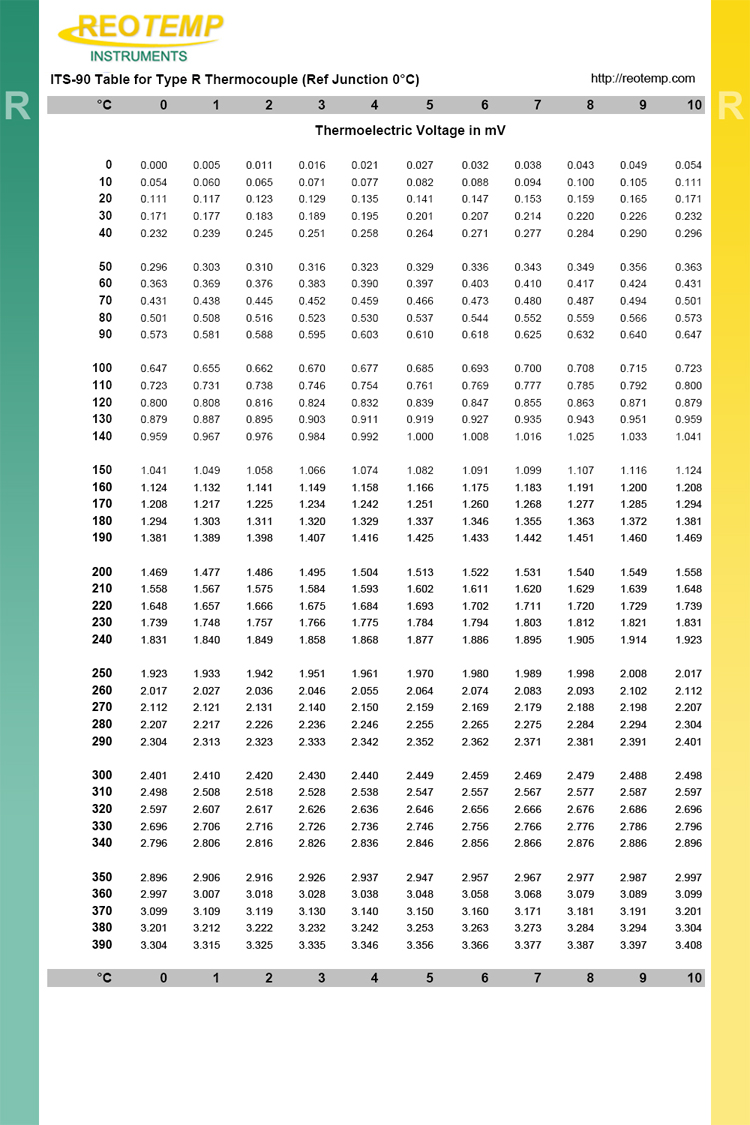

Type R Thermocouple Reference Table:
 |
 |
 |
 |
